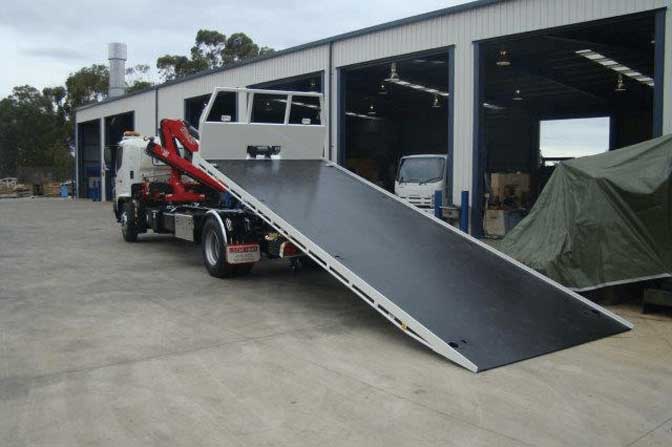

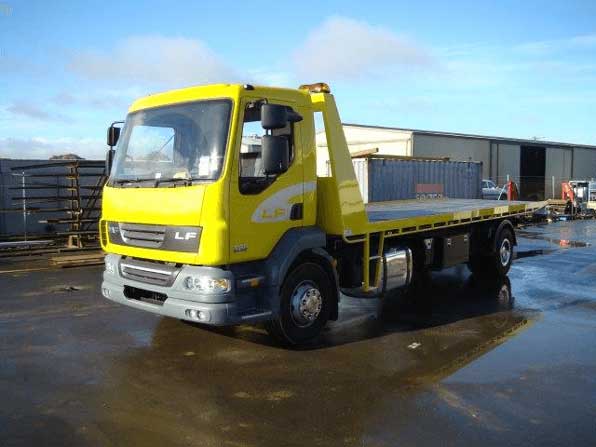

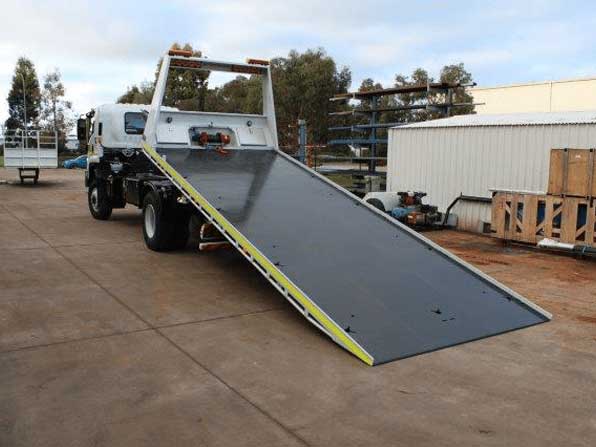

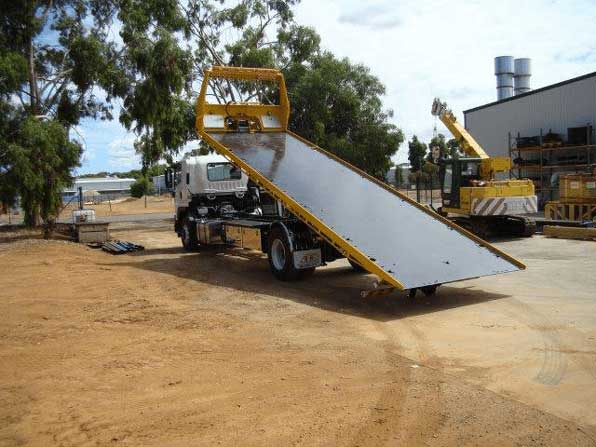

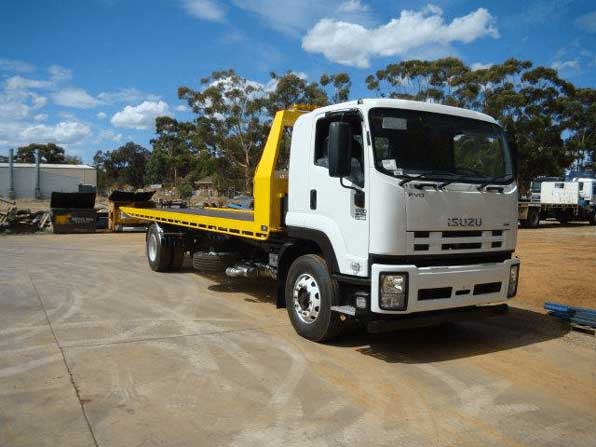

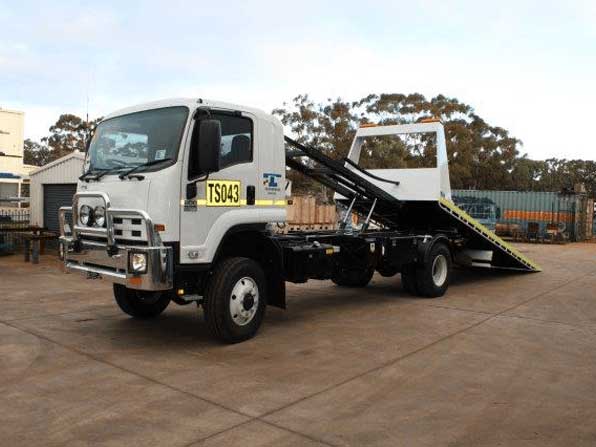

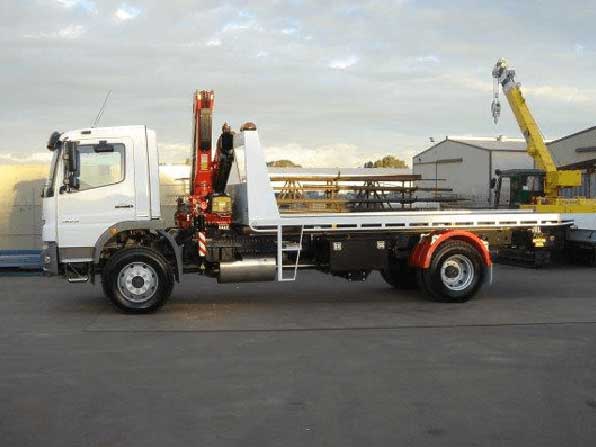

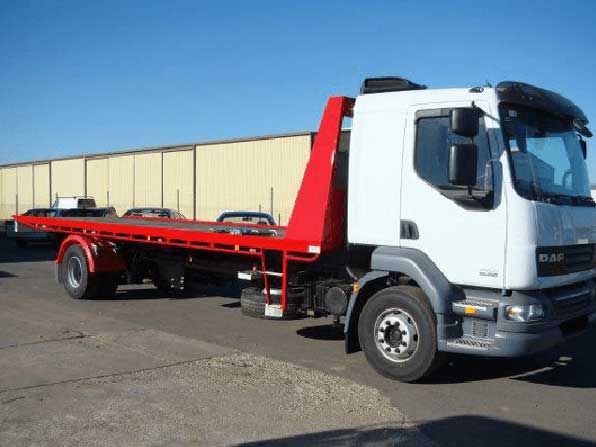

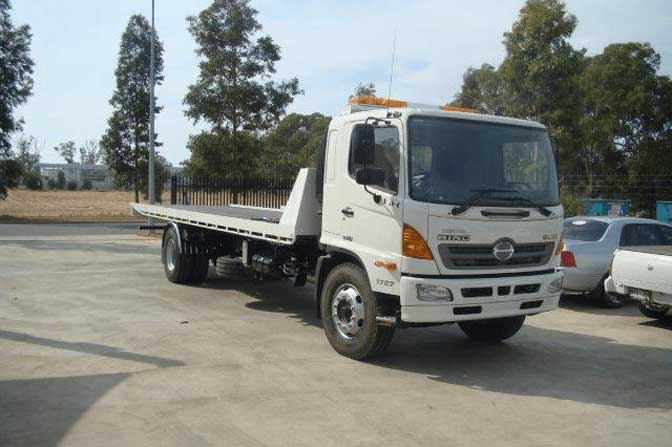

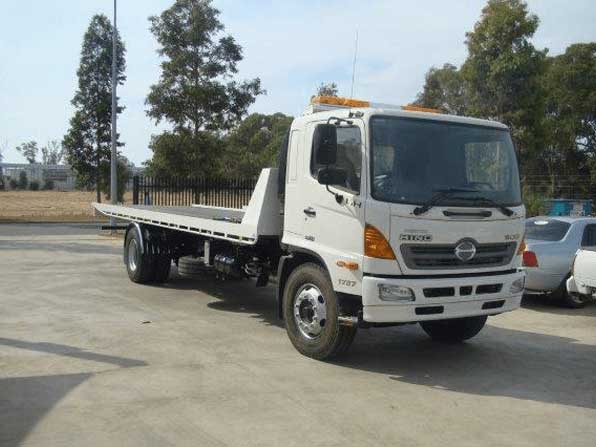

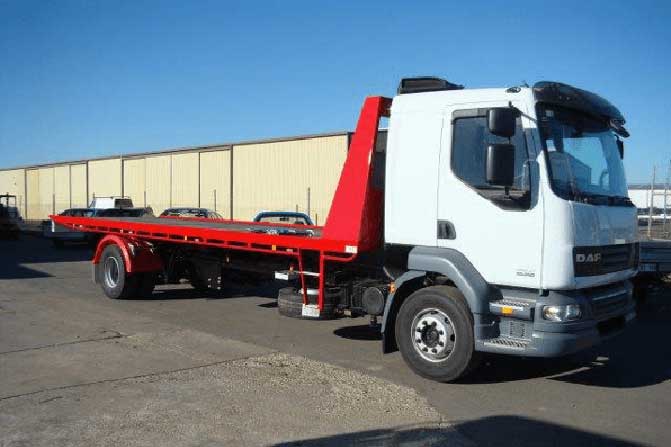

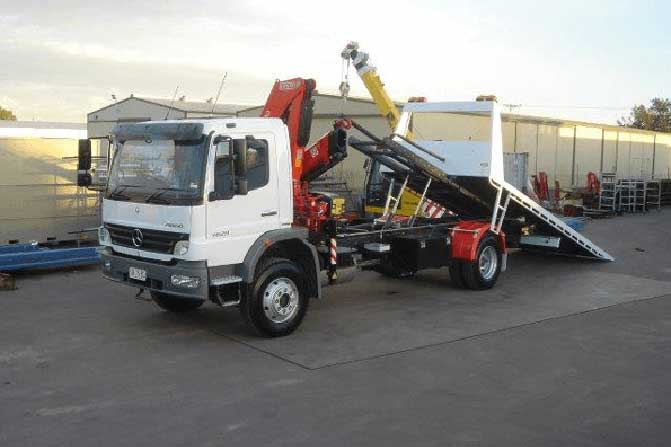

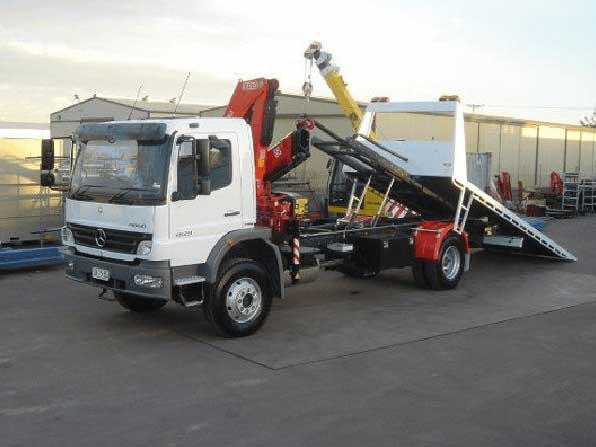

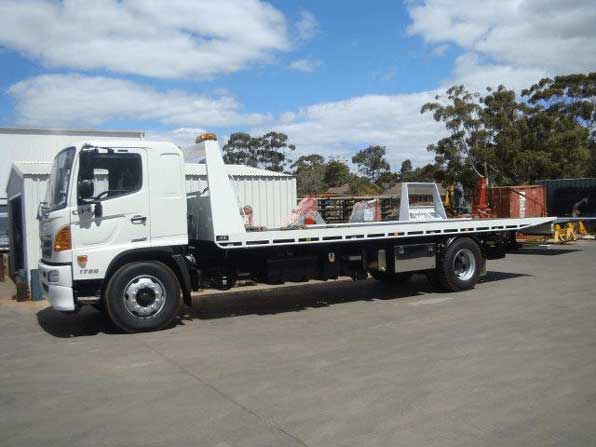

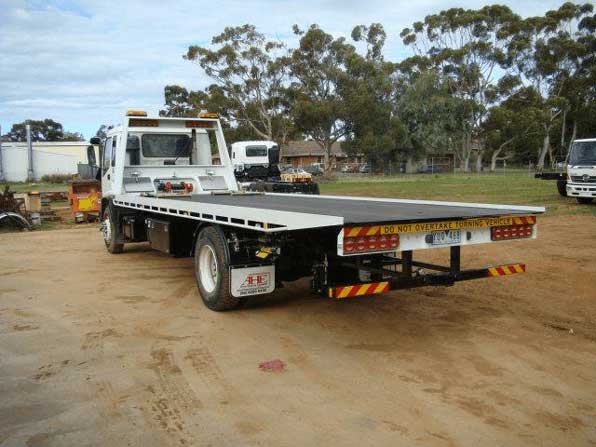

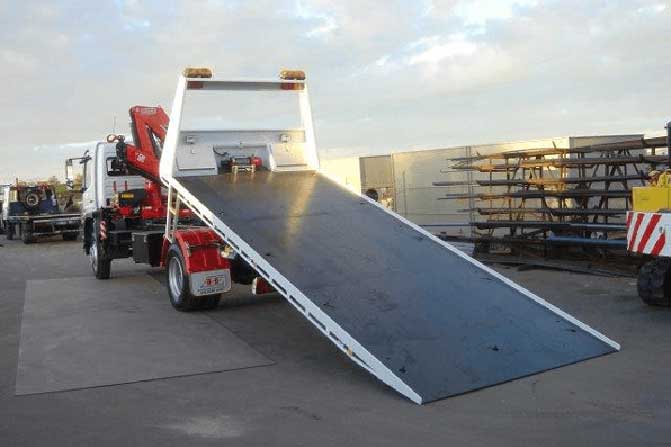

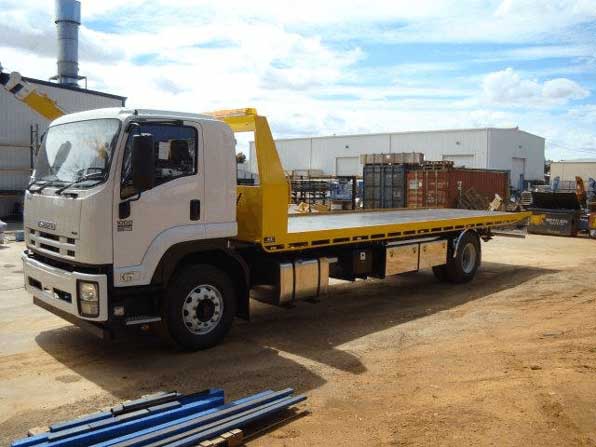

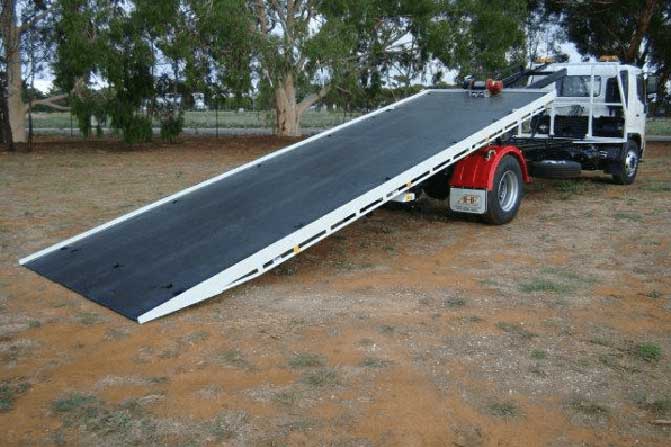

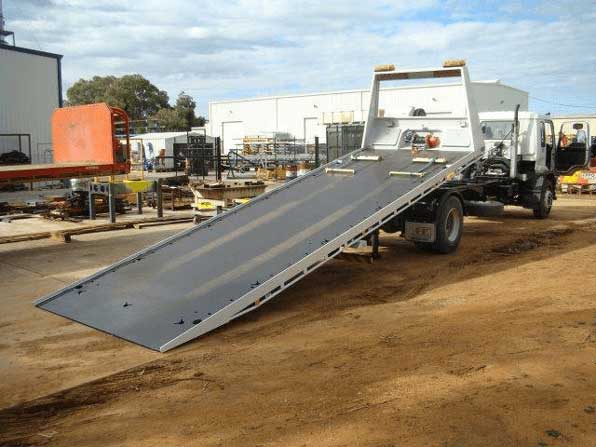

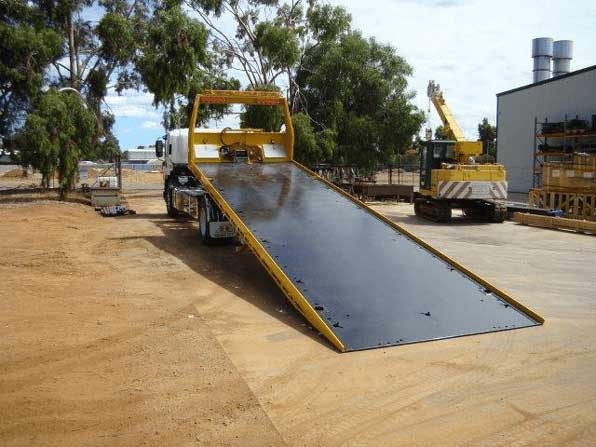

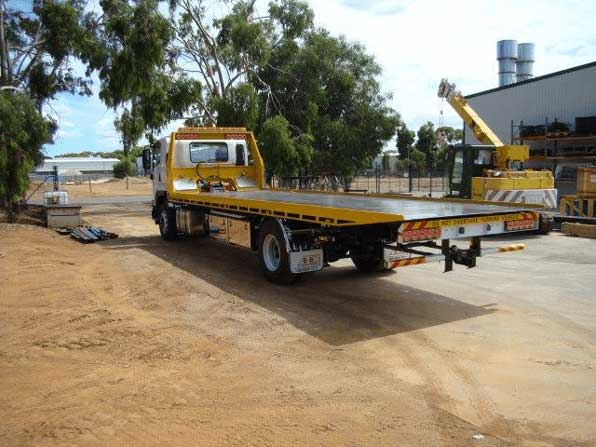

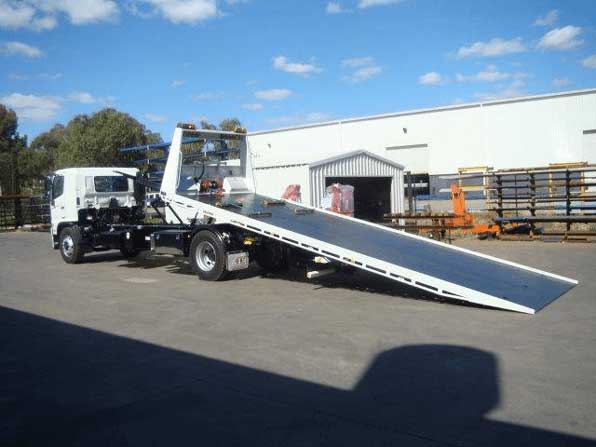

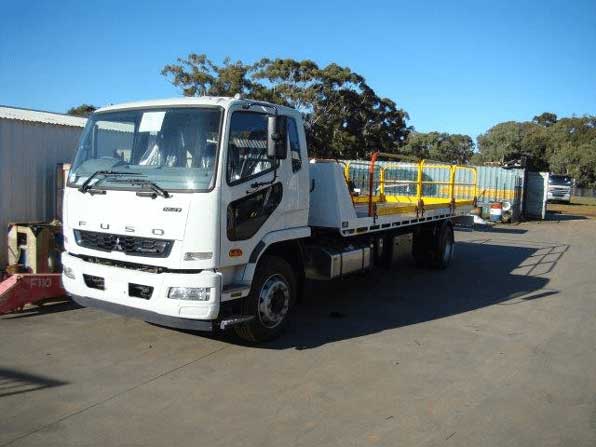

17,000 GVM
TILT
SLIDE
TRAY

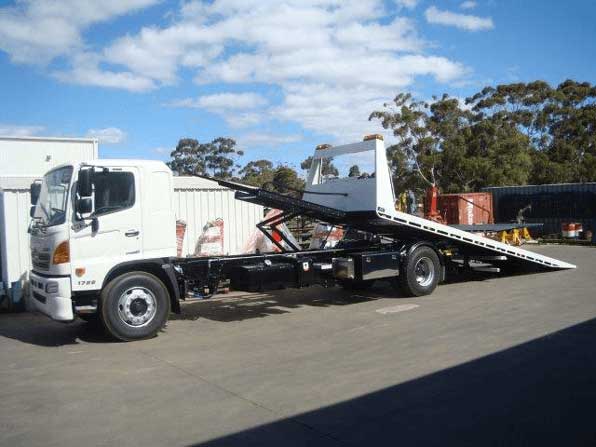

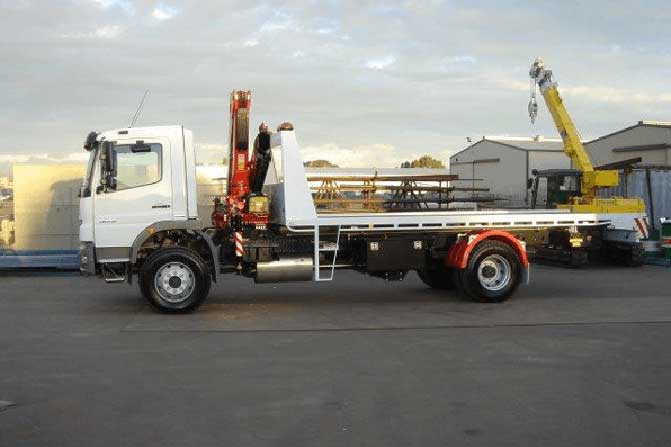

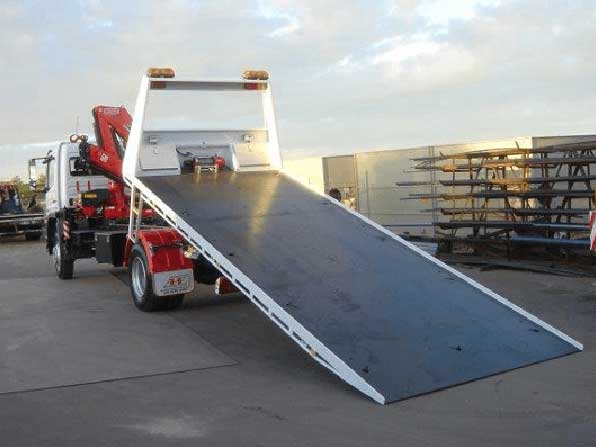

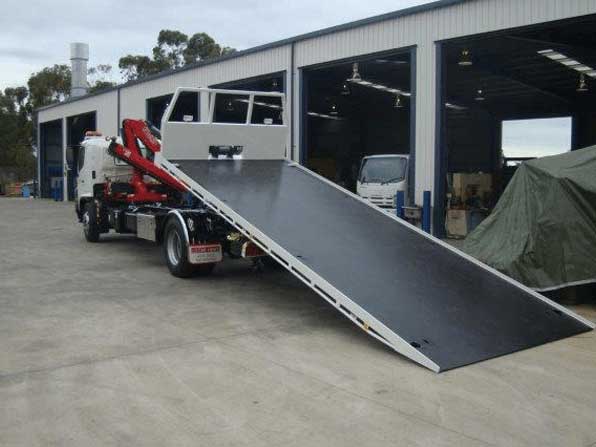

Standard Features of the 17,000 GVM Tilt Slide Tray
Hydraulics
- Air solenoid operated PTO
- High Flow Pump for fast operation
- Chassis mounted oil tank with return line filter and sight glass
- Hydraulic over centre valve hard plumbed to all cylinders
- High flow control valve with self centering controls
- Emergency stop system to disable the hydraulics

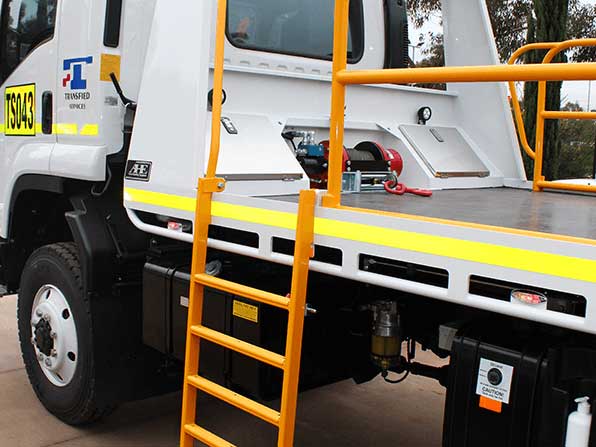

- 15,000lb Hydraulic planetary drive winch with manual free spool, front roller and 20mtrs high tensile wire rope with swivel hook
- 3.5m stroke heavy duty slide cylinder , 3.5” bore, 2” rod (3.9m stroke, 4” bore on longer trays)
- 30” stoke tilt cylinders, 3” bore ( May change to suit truck chassis)
- Winch lines travel in heavy duty drag chain
Body
- 5mm Hardox smooth plate floor
- 180/200 Channel tray slide channels with angle gussets
- 50x50x4 RHS Cross members with maximum 360 centres

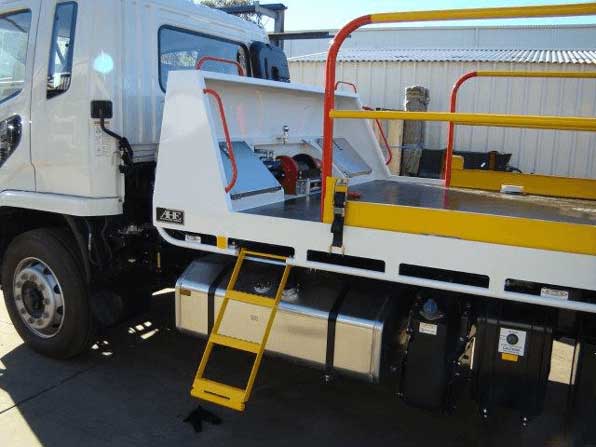

- Full front headboard featuring 2 x lockable left and right hand side tool weatherproof compartments with lockable stainless lids
- 10mm Domex high tensile plate side combing rails at nominated width

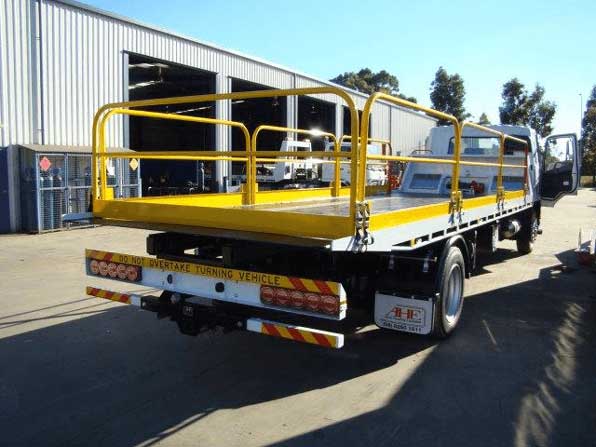

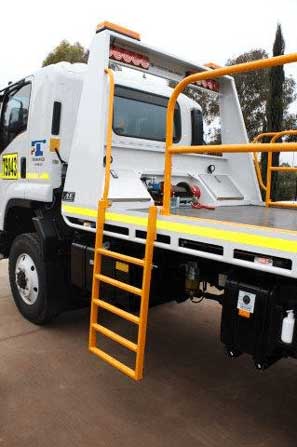

- Full length rope rails both sides with steps on each side at the front
- Chain keyholes in the floor - 3 across the rear and 3 on each side
- 50mm Tow ball mounted above winch on headboard
- Pulley block with mount holes in tray for winch cable alignment
Chassis
- Full sub-frame bolted to chassis with wearex slide pads for body to sit on
- RHS Slide carriage with plate gussets
- Rear tray pivots feature grease points and brass sintered bushes
- Body to slide on heavy duty wearex wear pad all round
- Plastic tub guards in nominated colour
- Remounted spare tyre
- Slide under body lock with cut out so body can’t be tilted when under lock
Lights
- Maxi Lamp LED rear lights fitted on spring loaded light bar
- LED number plate lights
- LED side clearance lights - 4 per side on the tray plus rear bar
- LED light at control valve
Paint
- Body is painted in high quality 2 Pack paint to match white cab (Any colour can be selected, however some add cost)
- Sub frame and underside of tray painted gloss black

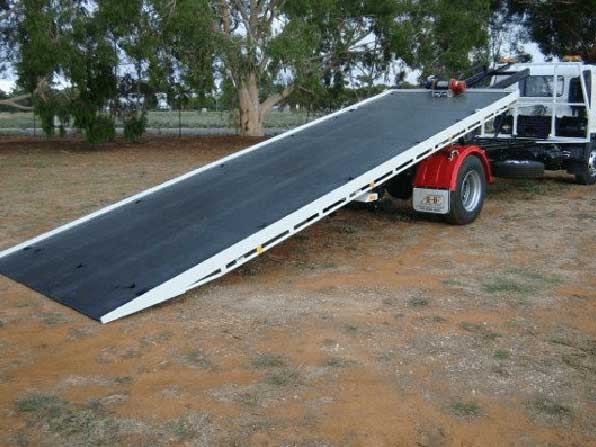

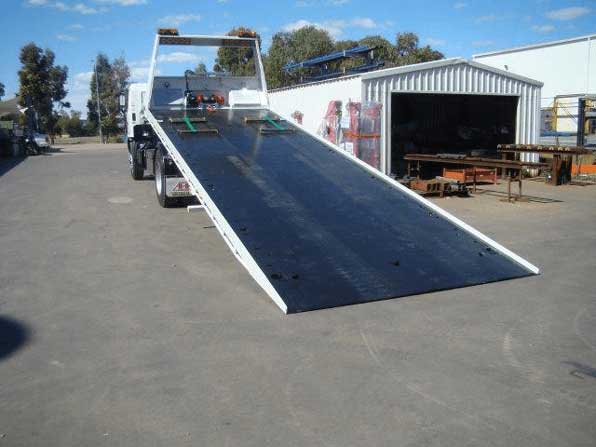

- Tray floor painted black or silver with non slip coating
