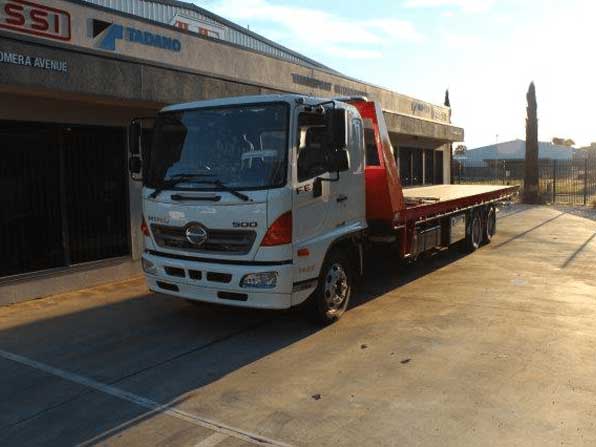

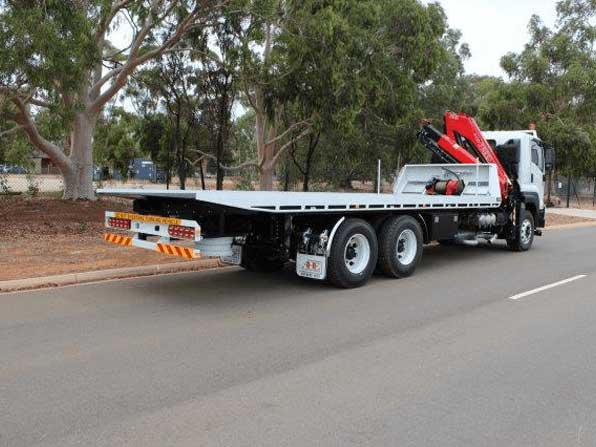

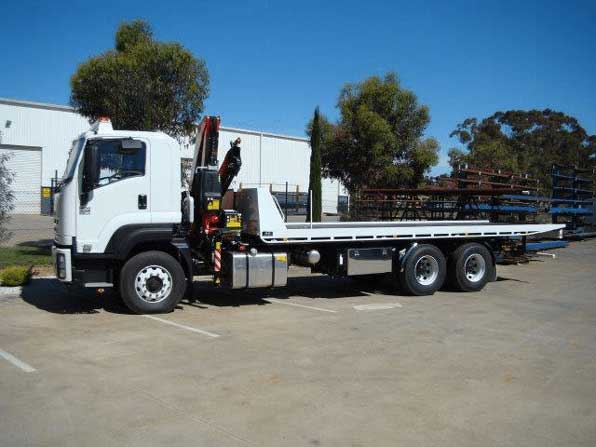

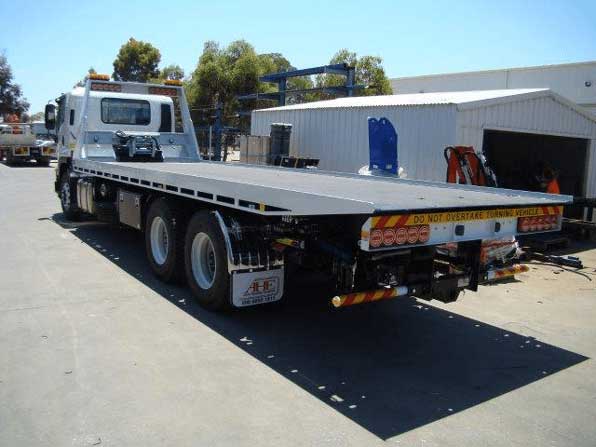

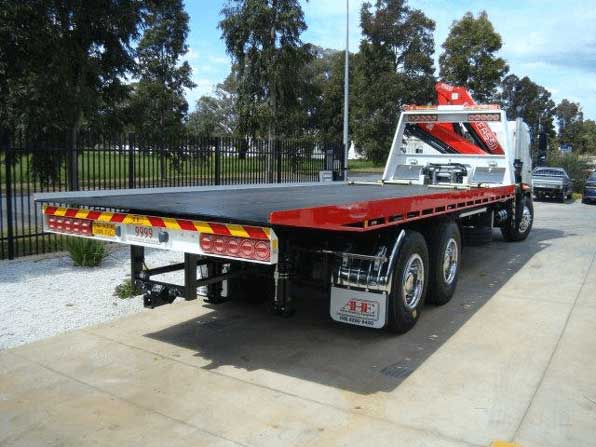

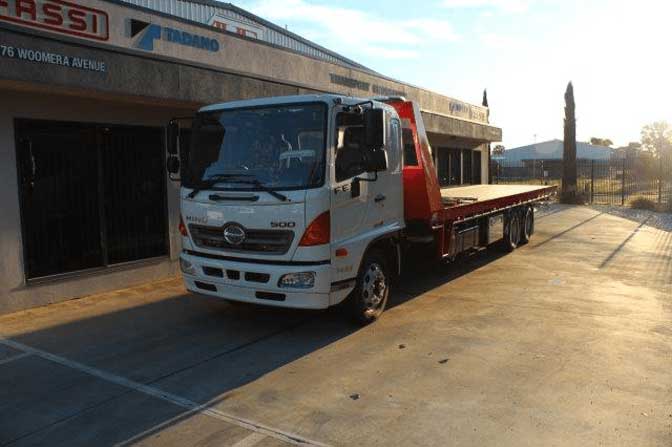

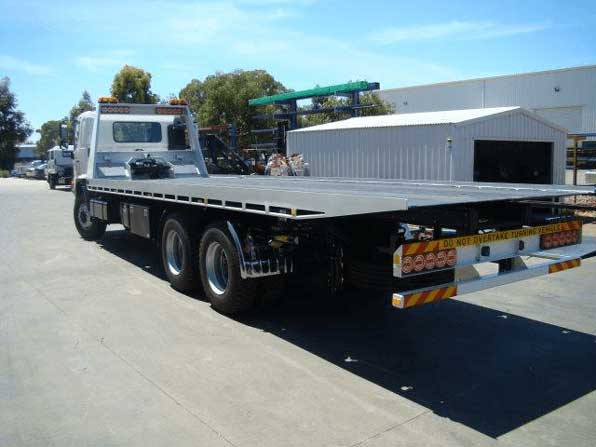

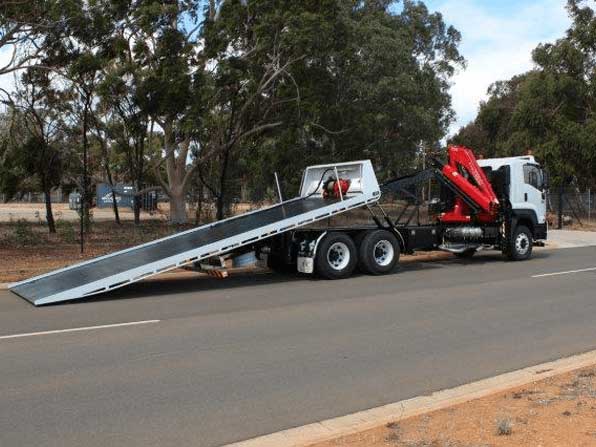

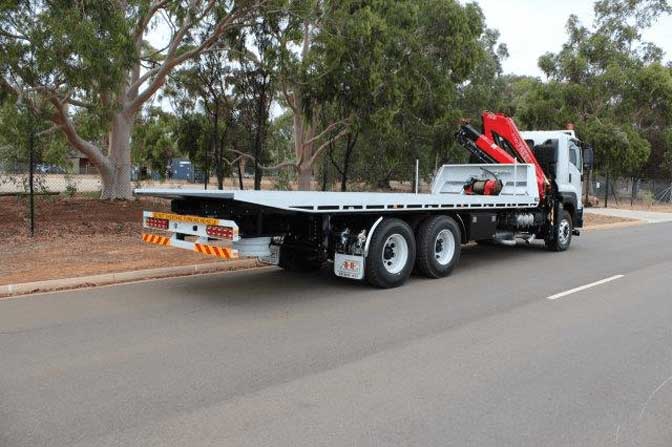

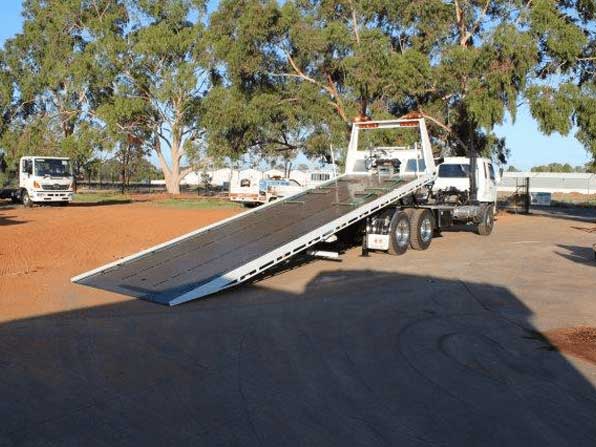

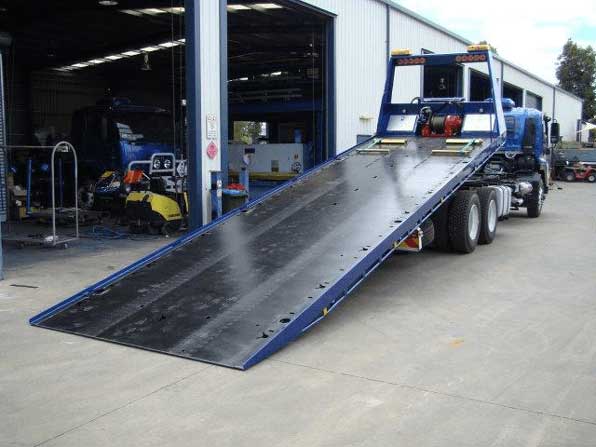

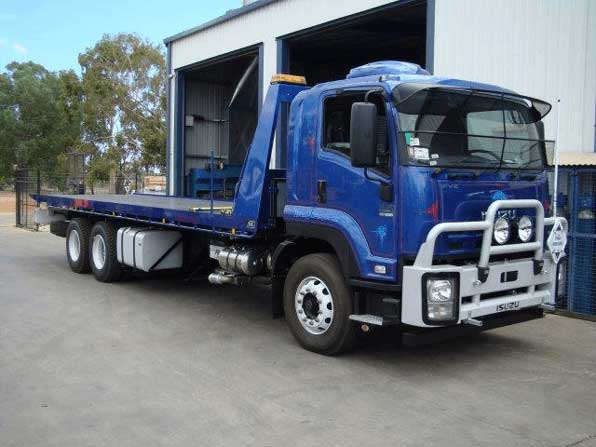

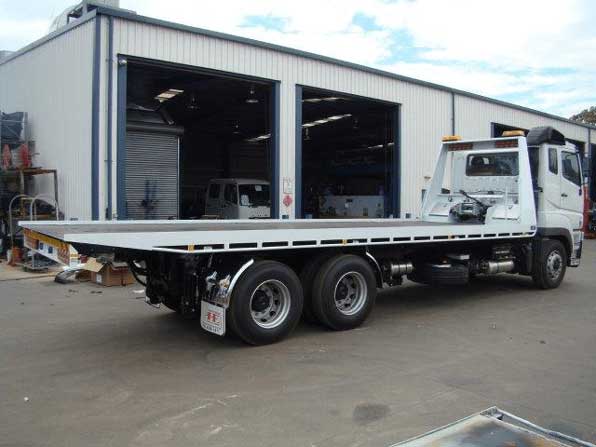

23,000 GVM
TILT
SLIDE
TRAY

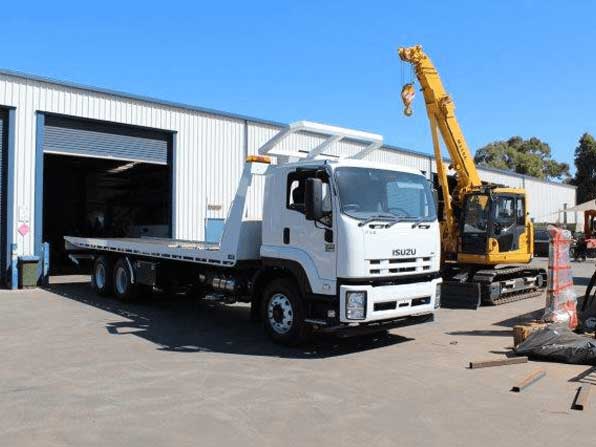

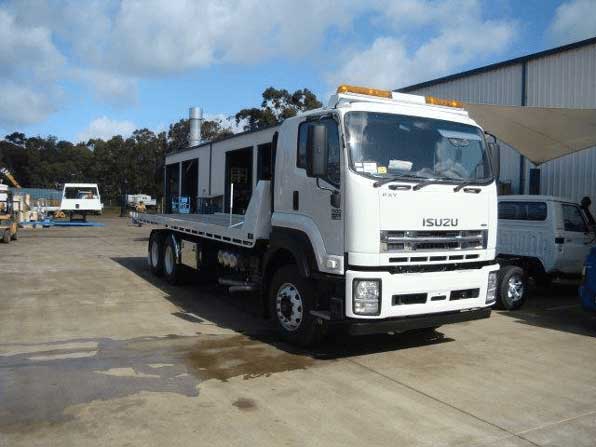

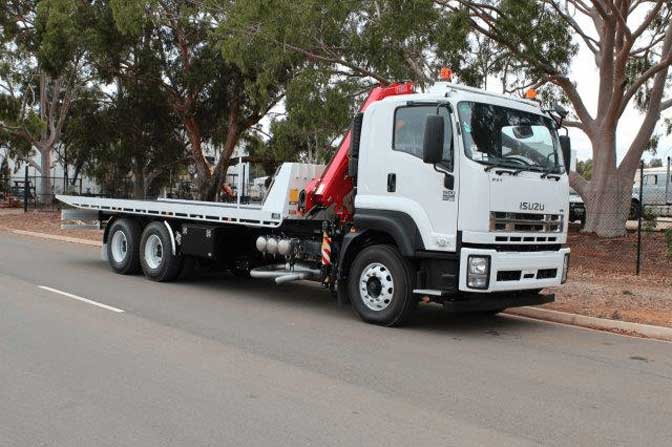

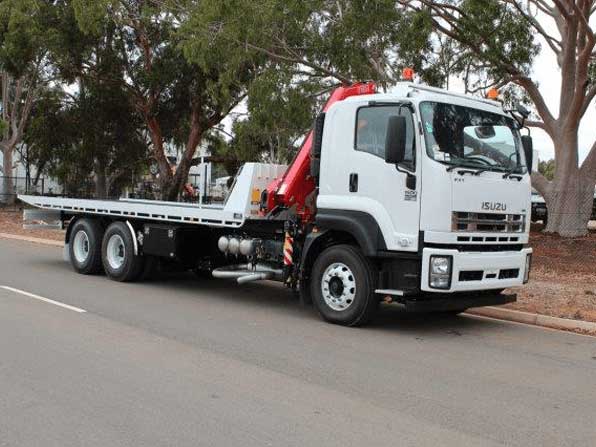

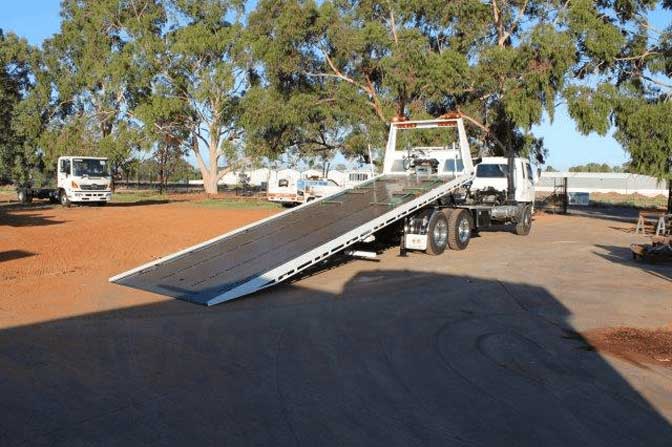

Standard Features of the 23,000 GVM Tilt Slide Tray
Hydraulics
- Air solenoid operated PTO
- High Flow Pump for fast operation
- Chassis mounted oil tank with return line filter and sight glass
- Hydraulic over centre valve hard plumbed to all cylinders
- High flow control valve with self centering controls
- Emergency stop system to disable the hydraulics
- 20,000lb Hydraulic worm drive winch with air switch free spool, front roller and 20mtrs high tensile wire rope
- 4m stroke heavy duty slide cylinder , 4.5” bore, 2.5” rod
- 36” stoke tilt cylinders, 3.5” bore
- Winch lines travel in heavy duty drag chain

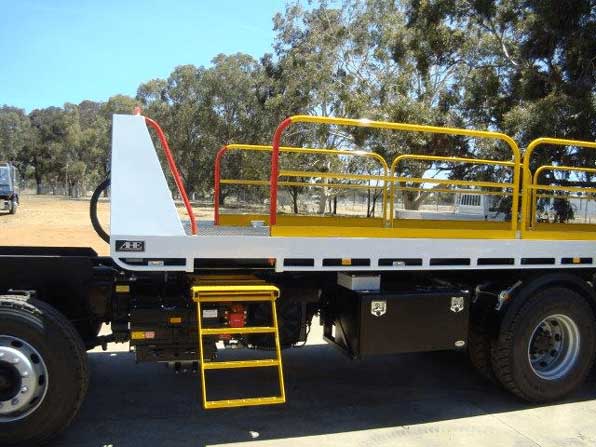

Body
- 6mm Hardox smooth plate floor
- 200 Channel tray slide channels with angle gussets
- 50x50x5 RHS Cross members with maximum 360 centres
- Full front headboard featuring 2 x lockable left and right hand side tool weatherproof compartments with lockable stainless lids
- 10mm Domex high tensile plate side combing rails at nominated width
- Full length rope rails both sides with steps on each side at the front
- Chain keyholes in the floor - 3 across the rear and 3 on each side
- 50mm Tow ball mounted above winch on headboard
- Pulley block with mount holes in tray for winch cable alignment
Chassis
- Full sub-frame bolted to chassis with wearex slide pads for body to sit on
- 150x100x9 RHS Slide carriage with plate gussets
- Rear tray pivots feature grease points and brass sintered bushes
- Body to slide on heavy duty wearex wear pad all round
- Stainless Steel 1/4 guards
- Remounted spare tyre
- Slide under body lock with cut out so body can’t be tilted when under lock

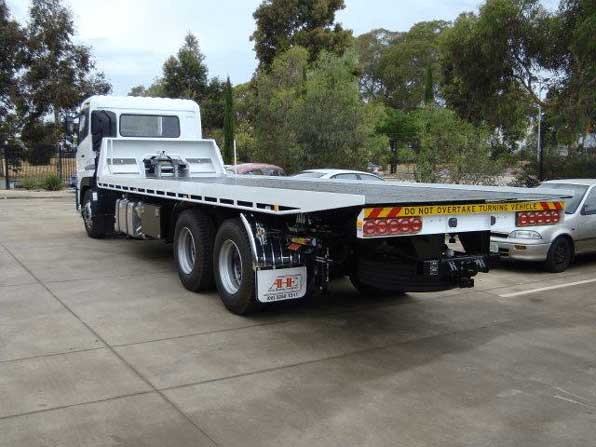

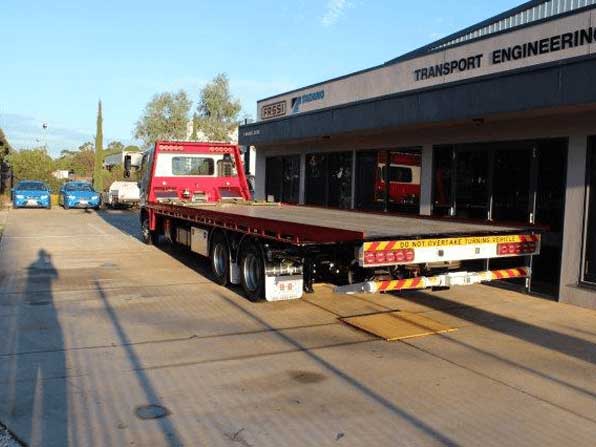

Lights
- Maxi Lamp LED rear lights fitted on spring loaded light bar
- LED number plate lights
- LED side clearance lights - 5 per side on the tray plus rear bar
- LED light at control valve
Paint
- Body is painted in high quality 2 Pack paint to match white cab (Any colour can be selected, however some add cost)
- Sub frame and underside of tray painted gloss black
- Tray floor painted black or silver with non slip coating
