• 27,500 GVM

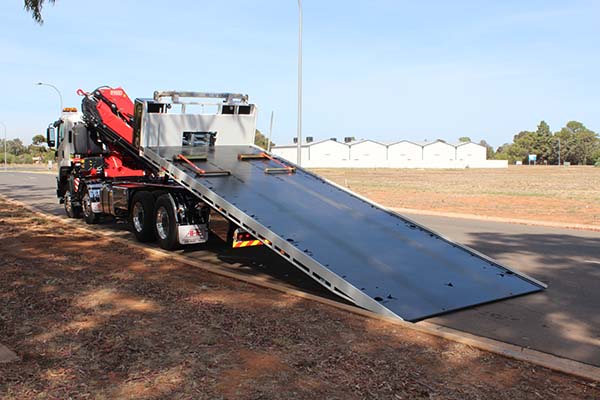

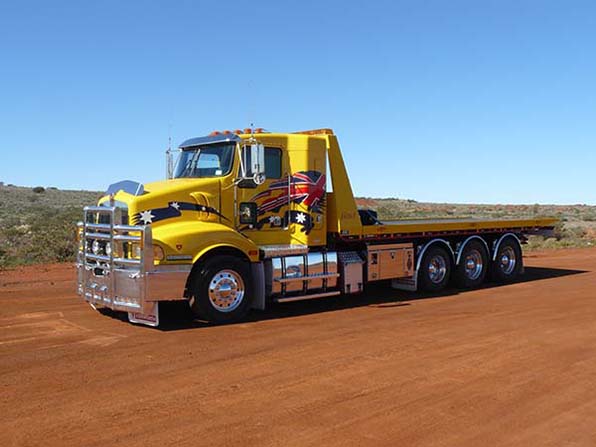

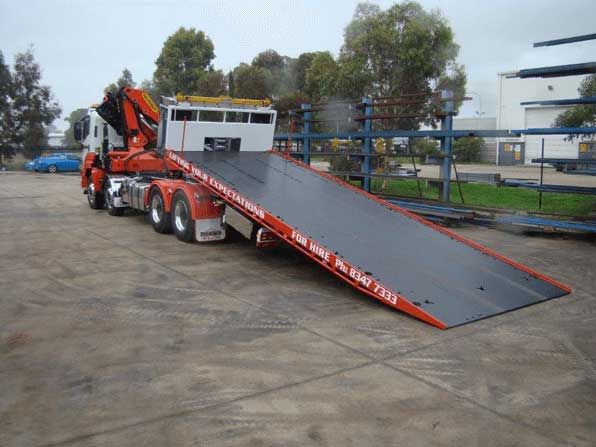

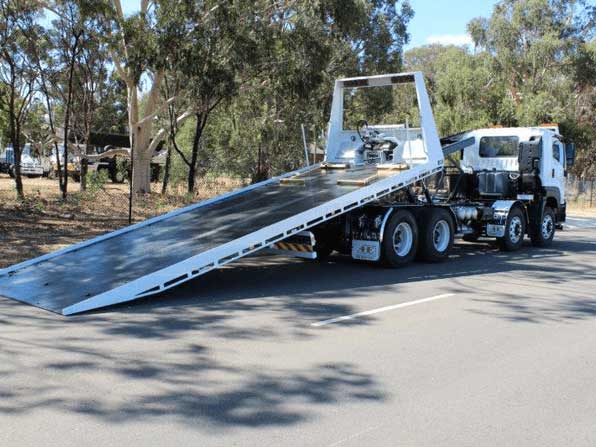

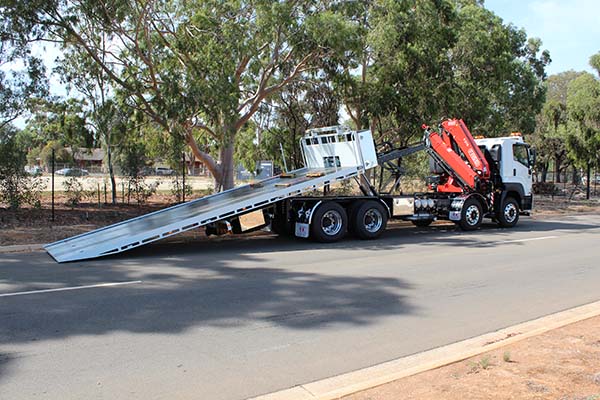

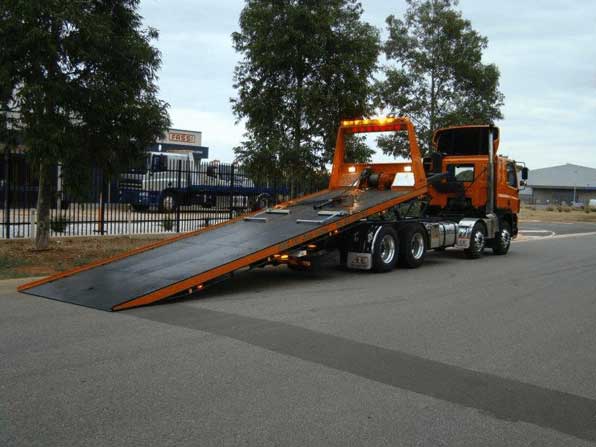

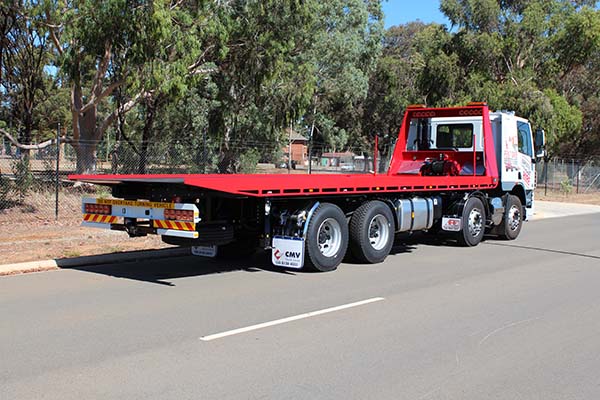

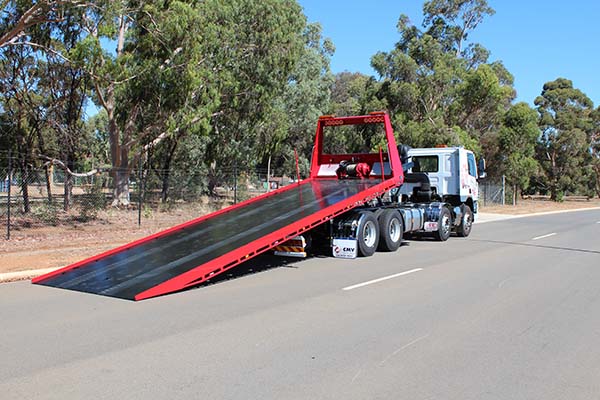

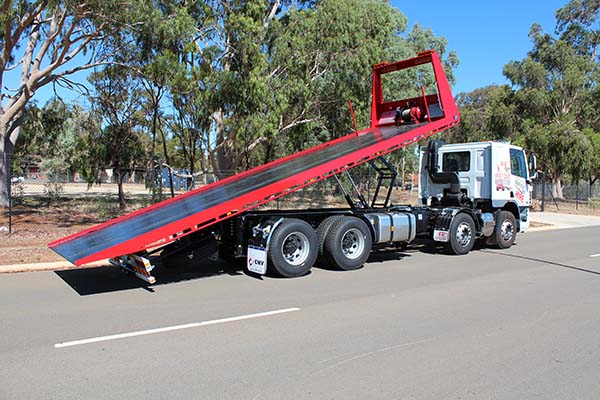

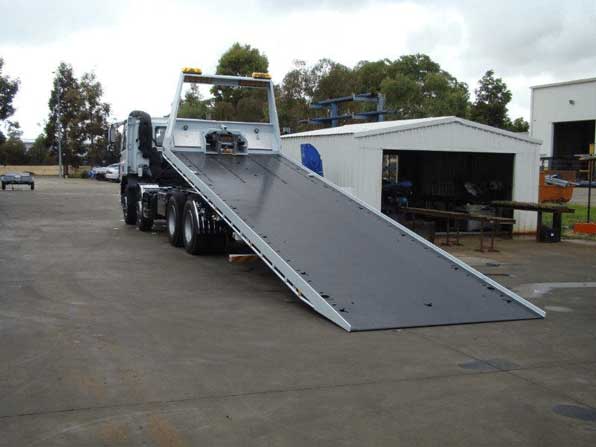

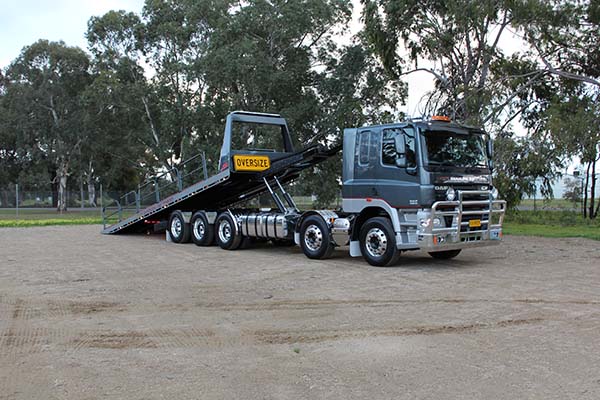

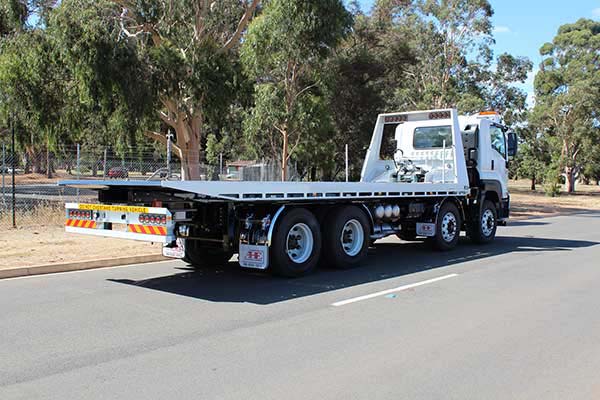

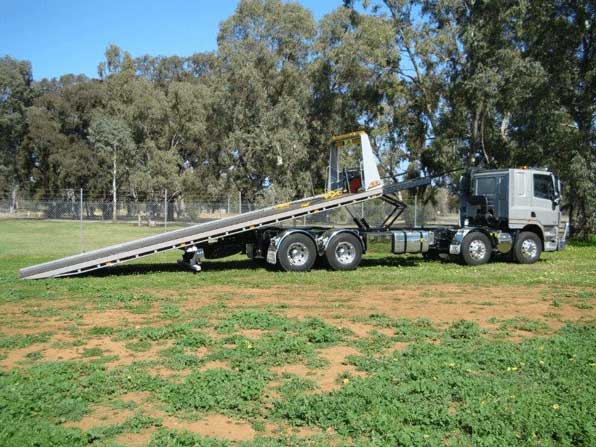

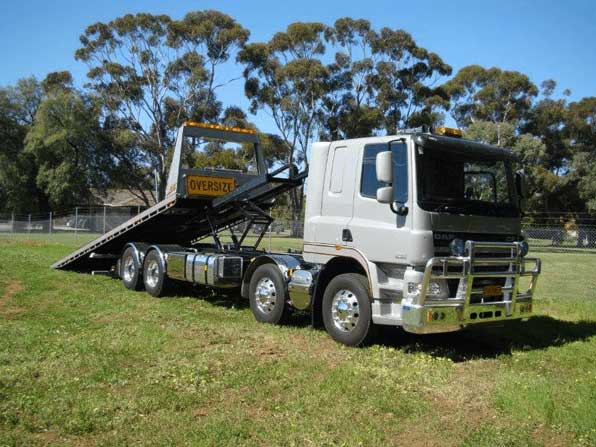

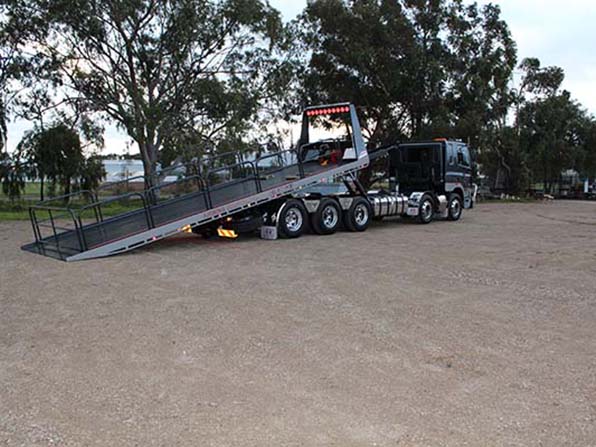

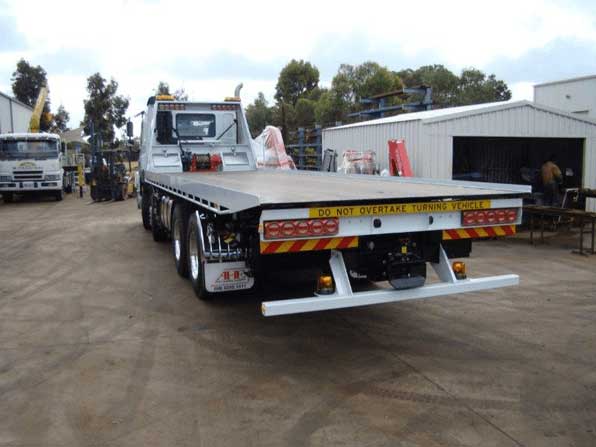

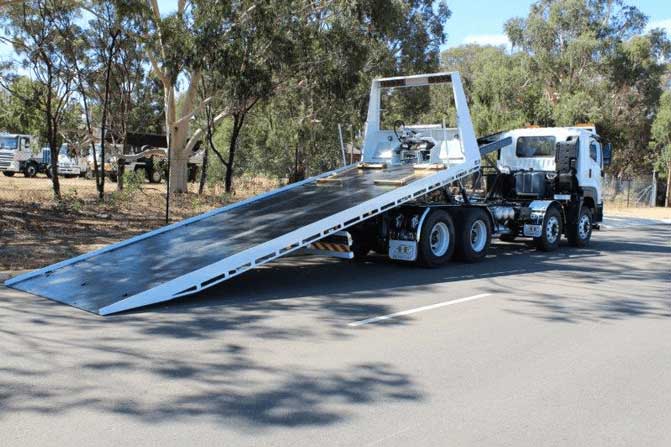

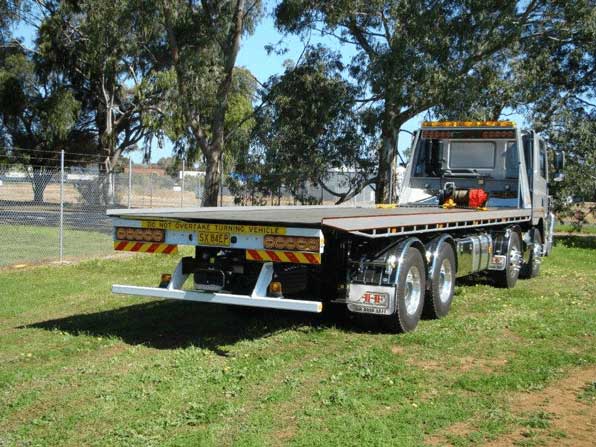

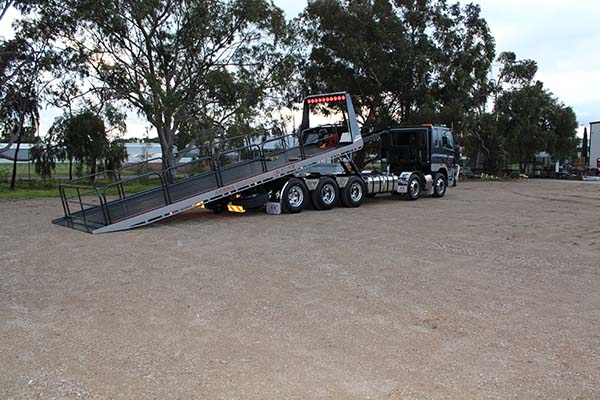

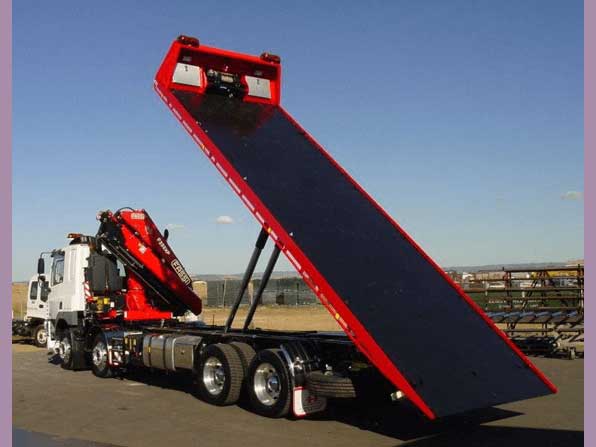

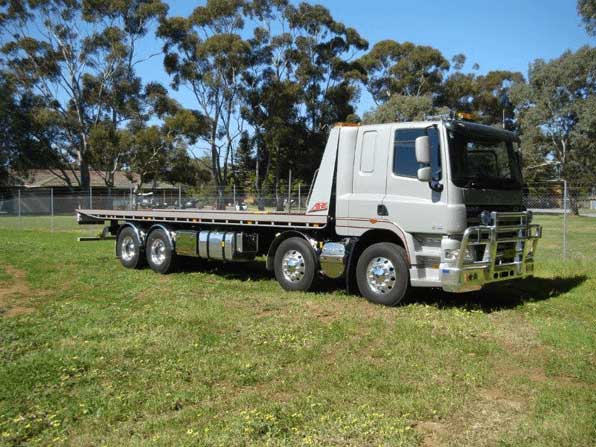

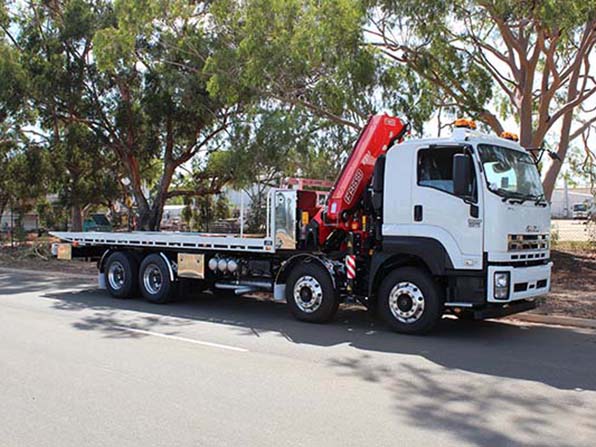

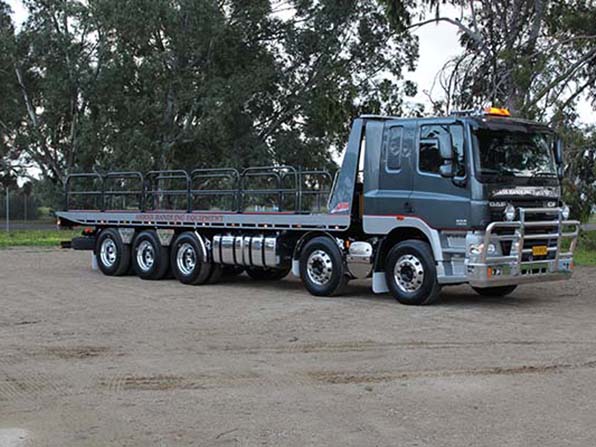

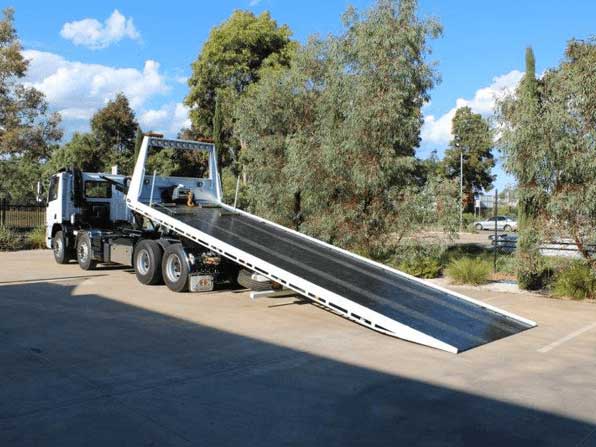

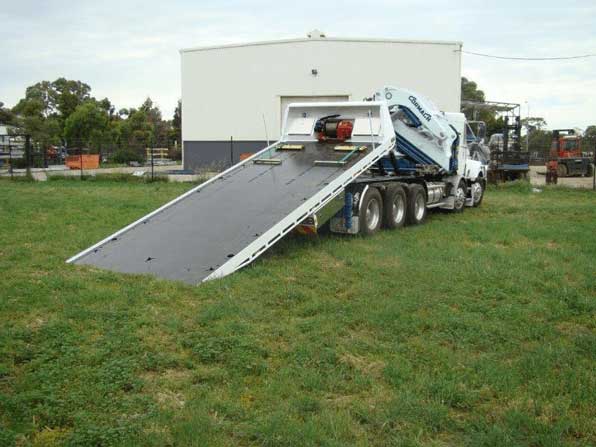

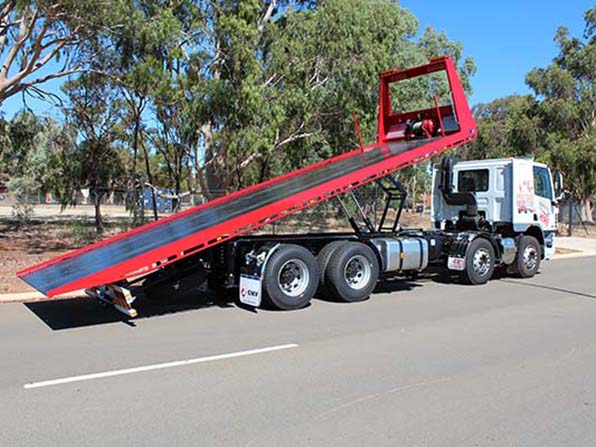

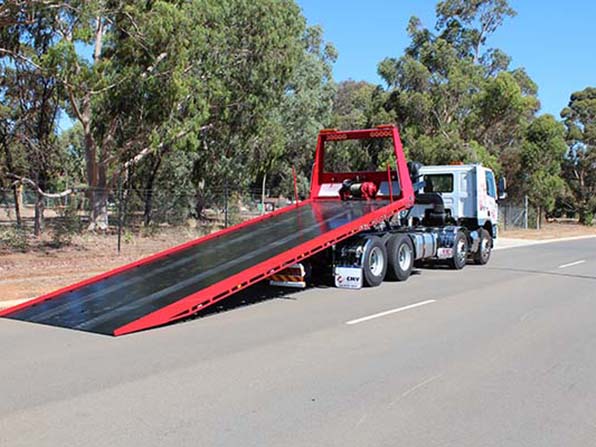

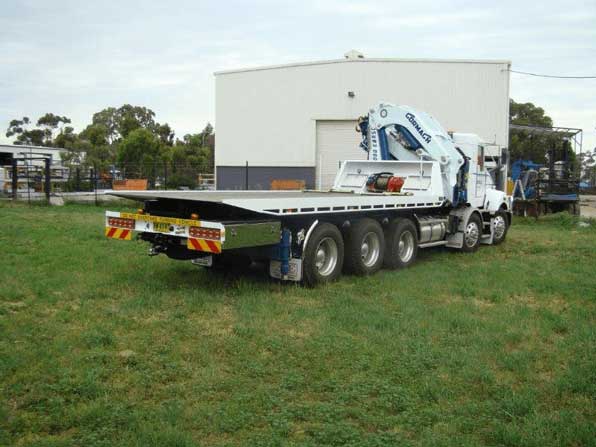

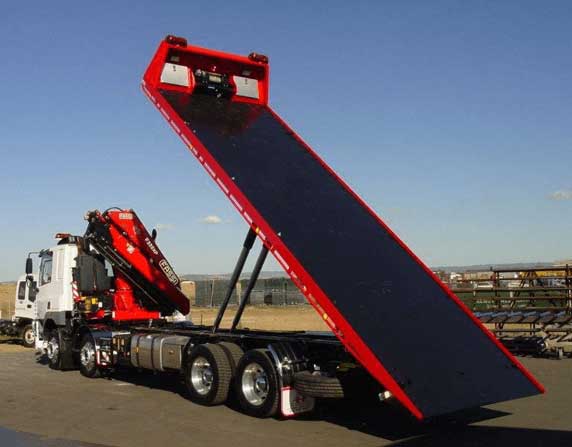

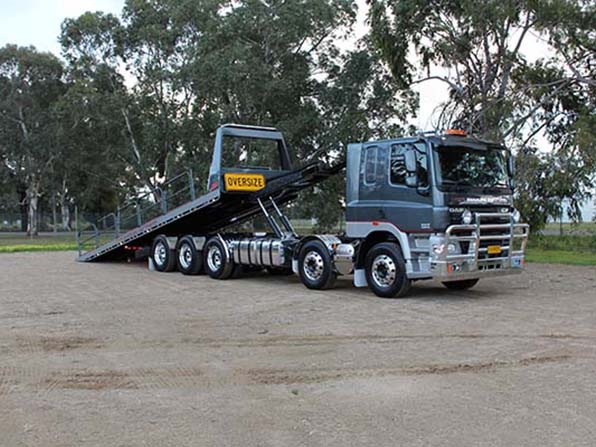

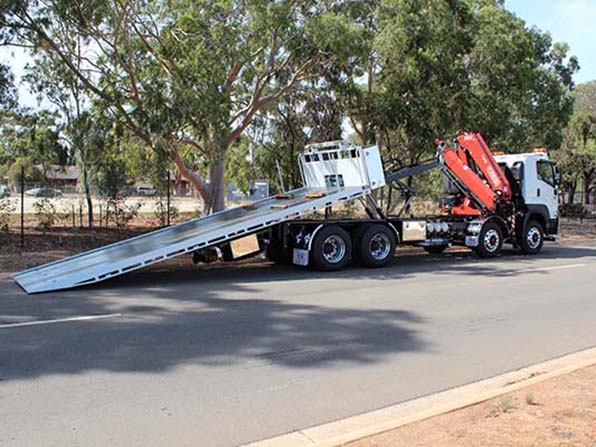

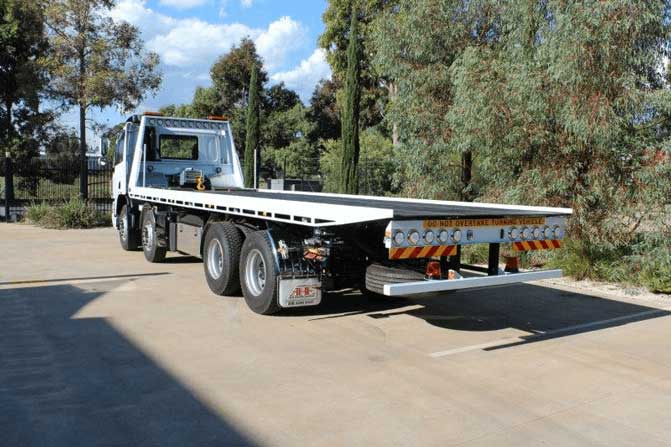

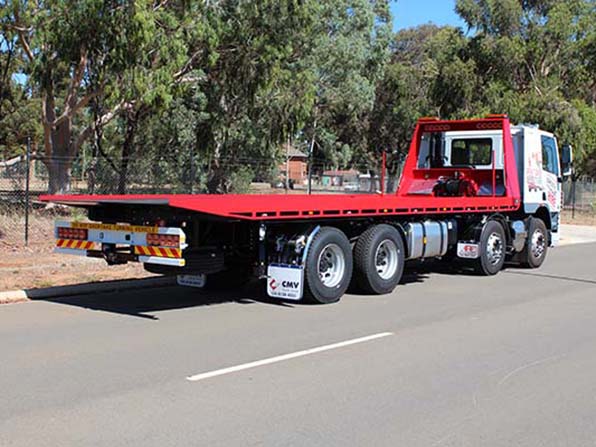

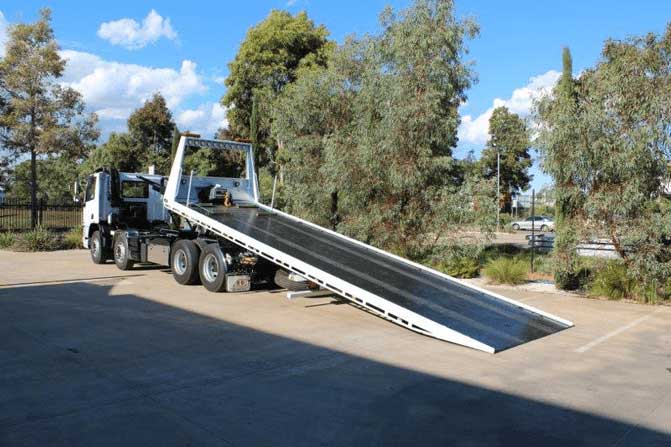

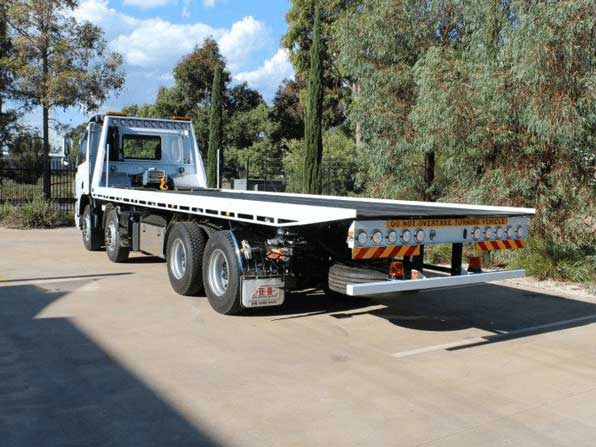

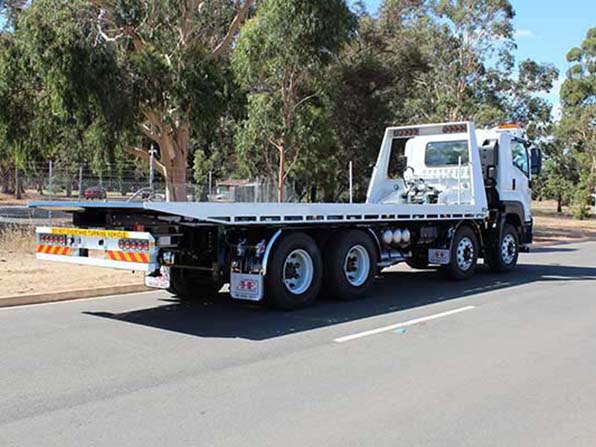

Standard Features of the 27,500 GVM Tilt Slide Tray


  • Air solenoid operated PTO
  • High Flow Pump for fast operation
  • Chassis mounted oil tank with return line filter and sight glass
  • Hydraulic over centre valve hard plumbed to all cylinders
  • High flow control valve with self centering controls
  • Emergency stop system to disable the hydraulics
  • 20,000lb Hydraulic worm drive winch with air switch free spool, front roller and 20mtrs high tensile wire rope
  • 4m stroke heavy duty slide cylinder , 4.5” bore, 2.5” rod
  • 36” stoke tilt cylinders, 3.5” bore
  • Winch lines travel in heavy duty drag chain


  • 6mm Hardox smooth plate floor
  • 200 UC tray slide beams
  • 50x50x5 RHS Cross members with maximum 360 centres
  • Full front headboard featuring 2 x lockable left and right hand side tool weatherproof compartments with lockable stainless lids
  • 10mm Domex high tensile plate side combing rails at nominated width
  • Full length rope rails both sides with steps on each side at the front
  • Chain keyholes in the floor - 3 across the rear and 3 on each side
  • 50mm Tow ball mounted above winch on headboard
  • Pulley block with mount holes in tray for winch cable alignment


  • Full sub-frame bolted to chassis with wearex slide pads for body to sit on
  • 150x100x9 RHS Slide carriage with plate gussets
  • Rear tray pivots feature grease points and brass sintered bushes
  • Body to slide on heavy duty wearex wear pad all round
  • Stainless Steel 1/4 guards rear, full Stainless Steel front 2nd steer guards
  • Remounted spare tyre
  • Slide under body lock with cut out so body can’t be tilted when under lock


  • Maxi Lamp LED rear lights fitted on spring loaded light bar
  • LED number plate lights
  • LED side clearance lights - 5 per side on the tray plus rear bar
  • LED light at control valve


  • Body is painted in high quality 2 Pack paint to match white cab (Any colour can be selected, however some add cost)
  • Sub frame and underside of tray painted gloss black
  • Tray floor painted black or silver with non slip coating
